| Component |
Specification |
Qty |
| Tank Material |
Carbon steel tank body / 5mm heads / 6mm baffles / 5mm |
-- |
| Subsea valve |
Jialong 4-inch Aluminum Alloy |
5 |
| Axle |
Fuwa13T Wide Plate |
3 |
| Tyres |
Linglong 315/80R22.5 |
13 |
| Steel ring |
9.0 × 22.5 |
13 |
| Leaf spring |
10 sheets, 16 mm thick |
6 |
| Air chamber |
Dual-chamber |
6 |
| ABS |
Tech enthusiast |
1 |
| Sequential valve |
WABCO |
1 |
| Suspension |
70-pin heavy-duty mechanical suspension (8 mm thick) |
1 |
| Towing pin |
JOST90# Prefabricated |
1 |
| support leg |
JOSTAC300 |
1 |
| lid |
Jialong Aluminium Alloy European Standard(ADR-certified) |
5 |
| Spare tyre holder |
factory-fitted |
1 |
| Toolbox |
lower left |
1 |
| Mudguard |
Thickened carbon steel with large corrugations(3 mm thick) |
1 |
| Hose storage rack |
Stainless steel, 6 metres (see photo),with a tamper-proof cap |
2 |
| Party |
Ladder at the front (pull-down/large gas strut),Foldable |
1 |
| Discharge hose |
3 inches by 5.5 metres(With a 3-inch aluminium alloy quick-release coupling) |
2 |
| Valve box |
the middle right |
1 |
| gas cylinder |
increase |
3 |
| fire extinguisher |
8 kg fire extinguisher |
2 |
| Spare tyre winder |
Standard specification |
1 |
| Socket wrench |
Standard specification |
1 |
| Colour |
Tank body: Mercedes-Benz White S002 (Sinotruk colour chart); chassis: Sinotruk Grey; wax coating; baked paint finish |
-- |

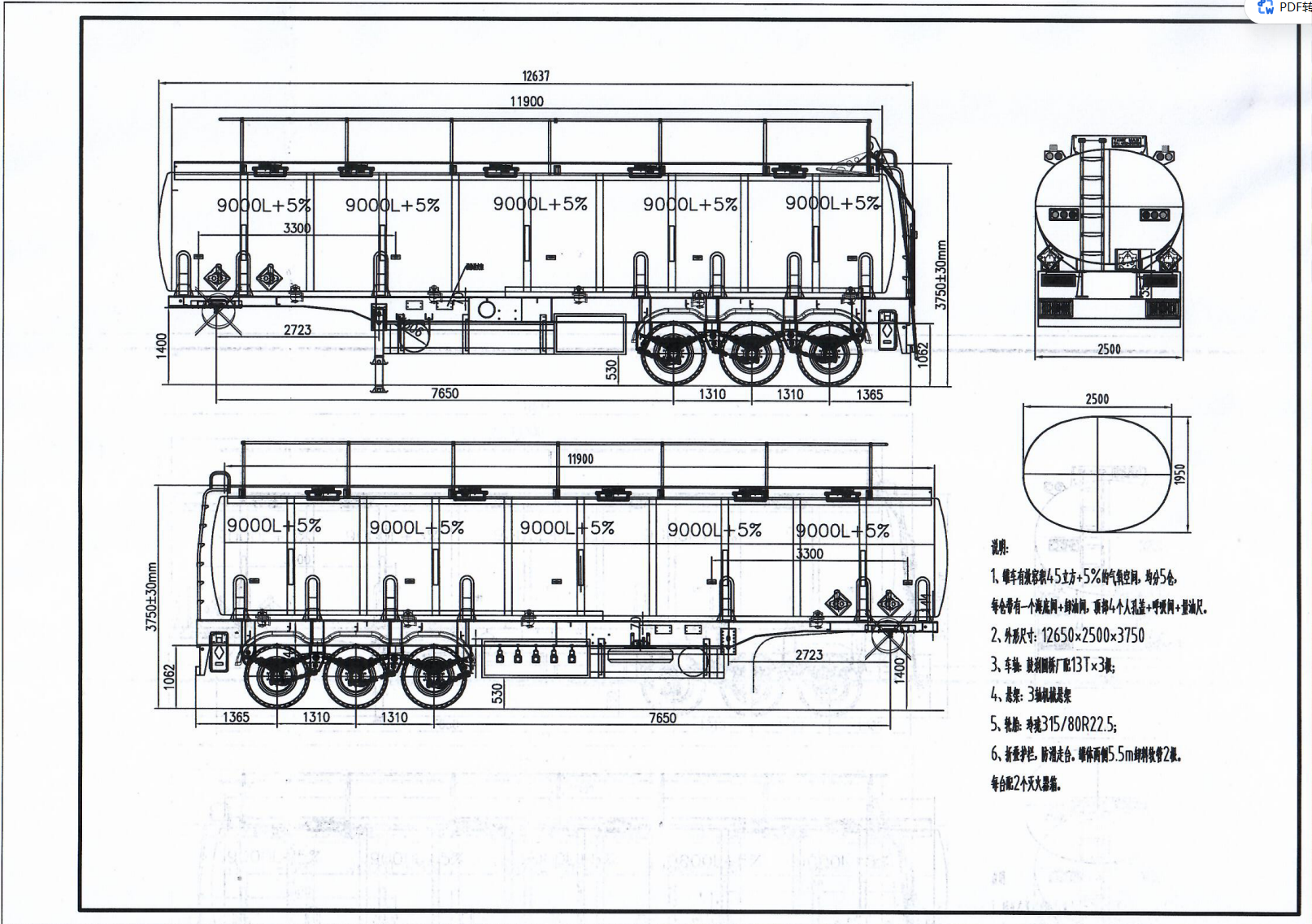

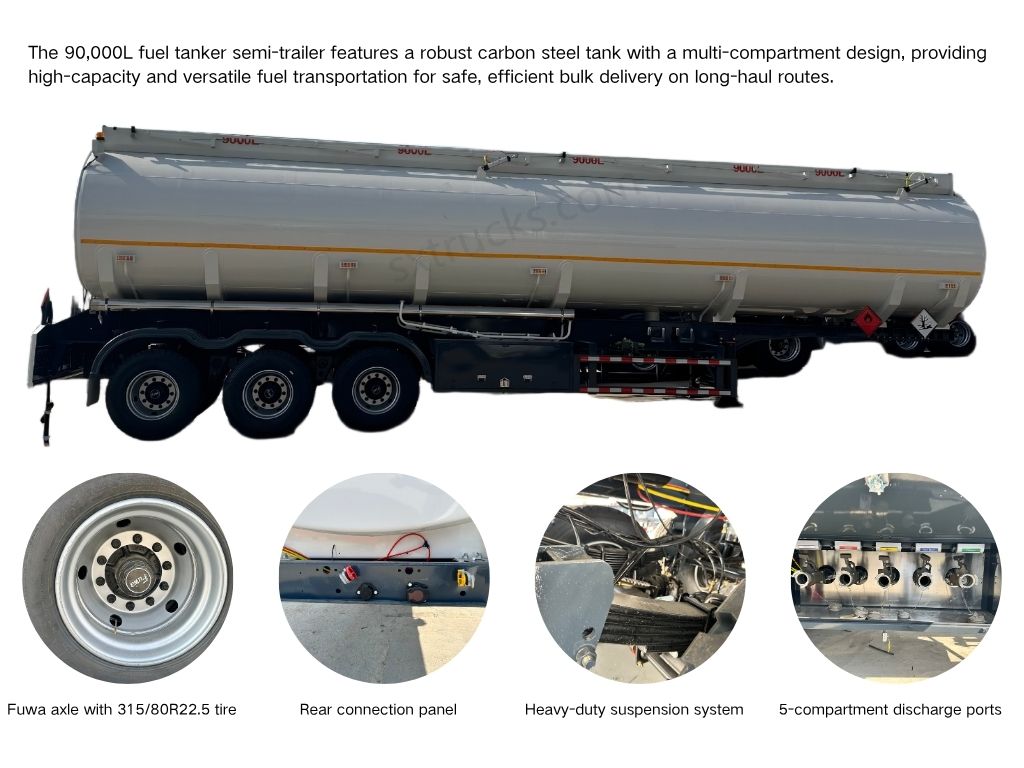

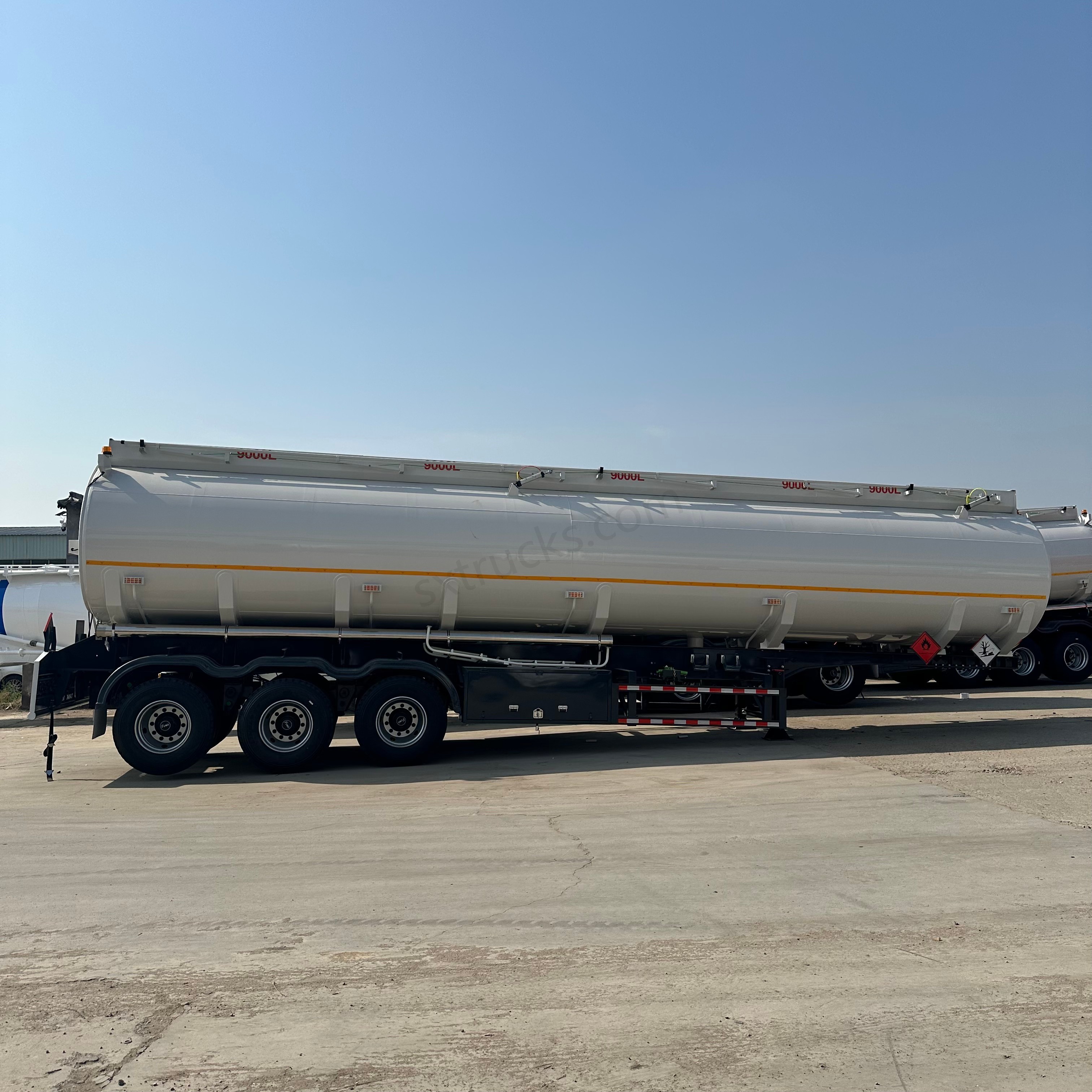

1.90,000L Multi-Compartment Tank Design
Equipped with 5 independent compartments, this tanker allows simultaneous transport of different fuels (gasoline, diesel, super diesel) without cross-contamination, meeting diverse bulk fuel distribution needs.
2.Heavy-Duty & Durable Construction
Built with high-strength carbon steel tank and reinforced chassis, paired with Fuwa axles and heavy-duty suspension, ensuring stable performance even on rough African roads.
3.Complete Safety System for Hazardous Goods
Fitted with explosion-proof manholes, emergency shut-off valves, and static grounding reels, fully compliant with international standards for safe fuel transportation.
4.Efficient & Easy Operation
Standard quick-connect discharge ports and pneumatic control system enable fast loading/unloading, improving operational efficiency for daily distribution tasks.
5.Application Scenarios
Long-Haul Fuel Distribution,Remote Site Fuel Supply,Multi-Fuel Logistics,Commercial Bulk Fuel Transport
